| TECHNICAL SPECIFICATIONS | DETAILS |
| Machine Max. Speed | 21000 Sheets/hour |
| Machine Nominal Size | 700 x 1840 mm |
| SLOTTING SECTION | |

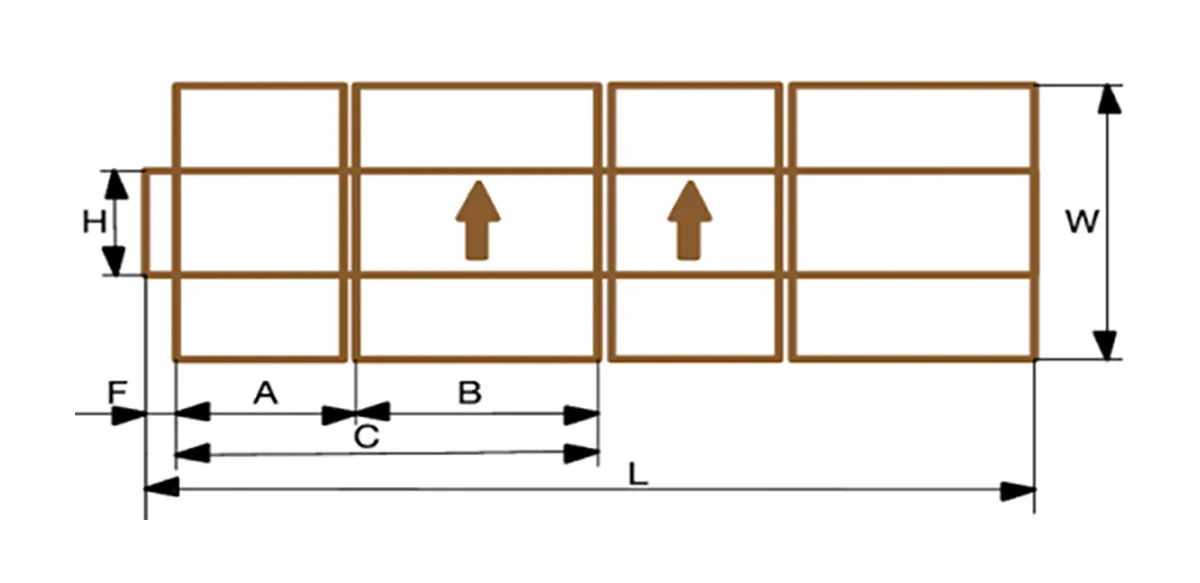

| Maximum Sheet length (L) Minimum Sheet length (L) | 1840 mm 400 mm |
| Maximum Sheet width (W)-Continuous feeding Maximum Sheet width (W)-Skip feeding Minimum Sheet width (W) | 600 mm 850 mm 200 mm |
| (Mathew System) Maximum printing Area | 600 x 1750 mm |
| (Reel Plate System) Maximum printing Area | 570 x 1750 mm |
| Standard Cliché Thickness | 6 mm |
| Counter Reverse Direction Small Panel (A) Large Panel (B) | 60 mm 120 mm |
| Regular Direction Panel (A)=Panel (B) | 115 mm |
| Maximum glue lap (F) | 40 mm |
| Cardboard thickness-(Lead edge feeder) | 1.5-8 mm |
| Cardboard thickness-(Non-crush feeder)-Option | 1-8 mm |
| Printing Precision | ±0.5 mm |
| FOLDER GLUER AND COUNTER EJECTOR SECTION | |
| Counter Reverse Direction Maximum small panel (A) Minimum small panel (A) | 440 mm 70 mm |
| Counter Reverse Direction Maximum large panel (B) Minimum large panel (B) | 650 mm 160 mm |
| Maximum folded panels C= (A+B) Minimum folded panels C= (A+B) | 900 mm + glue lap 230 mm + glue lap |
| Minimum Length (L)-(Folding) | 460 mm + glue lap |
| (Counter Ejector-Open Sheets) Maximum length (L) without folding | 900 mm |
| (Counter Ejector) Maximum width (W) Minimum width (W) | 600 mm 200 mm |
| (Counter Ejector) Maximum width (W)- Skip feeding | 850 mm |
-All data is for reference only, not a contract value.
-Speed varies according to the sheet quality, sheets sizes, running conditions, Speed Table…etc.
-We have the right to change the specification for improvement and the components brand with the same level or higher without further notice.
